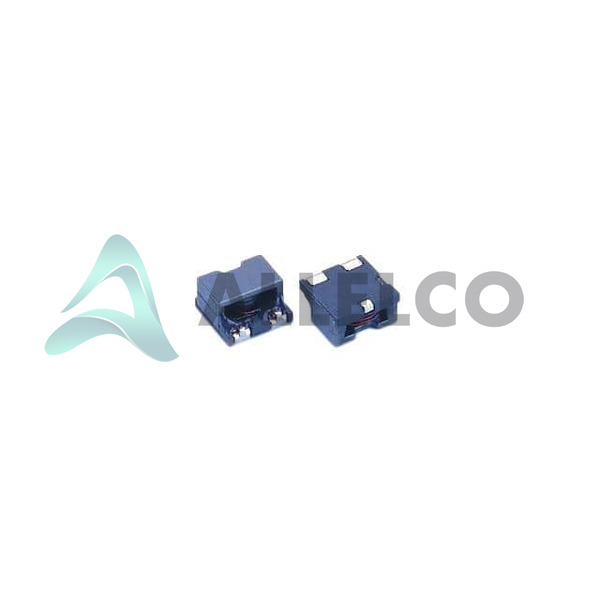

SCEP105S-R22 - Signal Transformer

Name: Signal Transformer SCEP105S-R22
Brand: Signal Transformer
SKU: SCEP105S-R22
Price: 1.08 USD
Availability: InStock
Rating: 5 (3 reviews)

Manufacturer Part Number: SCEP105S-R22

Manufacturer: Signal Transformer

Allelco Part Number: 98D-SCEP105S-R22

Warranty: Allelco Allelco WARTANY - Fantaro bebe kokoa

Famaritana fizarana: FIXED IND 220NH 20A 2.6 MOHM SMD

Package: Nonstandard

Takela-daza: 1.SCEP105S-R22.pdf ...

HTML Datasheet
SCEP105S Series.pdf

Fampahalalana momba ny tontolo iainana
Signal Transformer REACH.pdf RoHS EU Declaration Signal Transformer.pdf

RoHs Status: Rohs3 mifanaraka

~~Mampitaha~~

Ny fanamarinana anay

Ao amin'ny staoky: 35639

Vidin'ny singa: $1.08
Subtotal: $0.00

Mila vidiny tsara kokoa?
Add to cart sy mandefasa rfq izao, hifandray aminao avy hatrany izahay.

Quantity	Vidin'ny singa	Ext.Vidiny
1+	$1.08	$1.08

Ny vidiny etsy ambony dia tsy ahitana hetra sy vola be dia be, izay hisaintsaina ao amin'ny pejy fandaharana.

SAFIDY SAFIDY

Fomba fandoavam-bola

Ny fanamarinana anay

Specifications

SCEP105S-R22 Famaritana momba ny teknolojia
Signal Transformer - SCEP105S-R22 Famaritana momba ny teknika, toetra, toetra, tarehimarika ary ampahany miaraka amin'ny voafaritra mitovy amin'ny Signal Transformer - SCEP105S-R22

Toetran'ny vokatra	Ny sandan'ny toetra
Manufacturer	Signal Transformer
Type	-
fandeferana	±30%
Package Device Device	-
Size / Dimension	0.409' L x 0.409' W (10.40mm x 10.40mm)
fiarovana	Shielded
Series	SCEP105S
naoty	-
Q @ Freq	-
Package / Case	Nonstandard
Fonosana	Tape & Reel (TR)

Toetran'ny vokatra	Ny sandan'ny toetra
Operating Temperature	-40°C ~ 125°C
Tendrombohitra	Surface Mount
Fitaovana - Core	-
Inductance Frequency - Test	100 kHz
Inductance	220 nH
Height - Mipetraka (Max)	0.220' (5.60mm)
Frequency - Self Resonant	-
DC Resistance (DCR)	2.6mOhm Max
Ny isa ankehitriny (AMPS)	20 A
Ankehitriny - saturation (isat)	40A

Fanasalamana momba ny tontolo iainana sy fanondranana

TOETRA	DESCRIPTION
RoHs Status	Rohs3 mifanaraka
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Tonga sata	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000

Ampahany amin'ny voafaritra mitovy

Ny lafiny telo amin'ny ankavanana dia manana fepetra manokana mitovy amin'ny Signal Transformer SCEP105S-R22.

Toetran'ny vokatra
Part Number	SCEP105S-3R2	SCEP105S-1R8	SCEP105S-2R5	SCEP105S-R45
Manufacturer	Signal Transformer	Signal Transformer	Signal Transformer	Signal Transformer
fiarovana	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Height - Mipetraka (Max)	-	-	-	-
fandeferana	-	-	-	-
Inductance Frequency - Test	-	-	-	-
DC Resistance (DCR)	-	-	-	-
Q @ Freq	-	-	-	-
Tendrombohitra	-	Surface Mount	Through Hole	Surface Mount
Ankehitriny - saturation (isat)	-	-	-	-
Fitaovana - Core	-	-	-	-
Fonosana	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Ny isa ankehitriny (AMPS)	-	-	-	-
naoty	-	-	-	-
Size / Dimension	-	-	-	-
Inductance	-	-	-	-
Series	-	-	-	-
Package Device Device	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Type	-	-	-	-
Frequency - Self Resonant	-	-	-	-

SCEP105S-R22 Datasheet PDF

Ampidino sy SCEP105S-R22 PDF Datasheets sy Signal Transformer Documation ho an'ny SCEP105S-R22 - Signal Transformer.

HTML Datasheet: SCEP105S Series.pdf
Fampahalalana momba ny tontolo iainana: Signal Transformer REACH.pdf RoHS EU Declaration Signal Transformer.pdf
